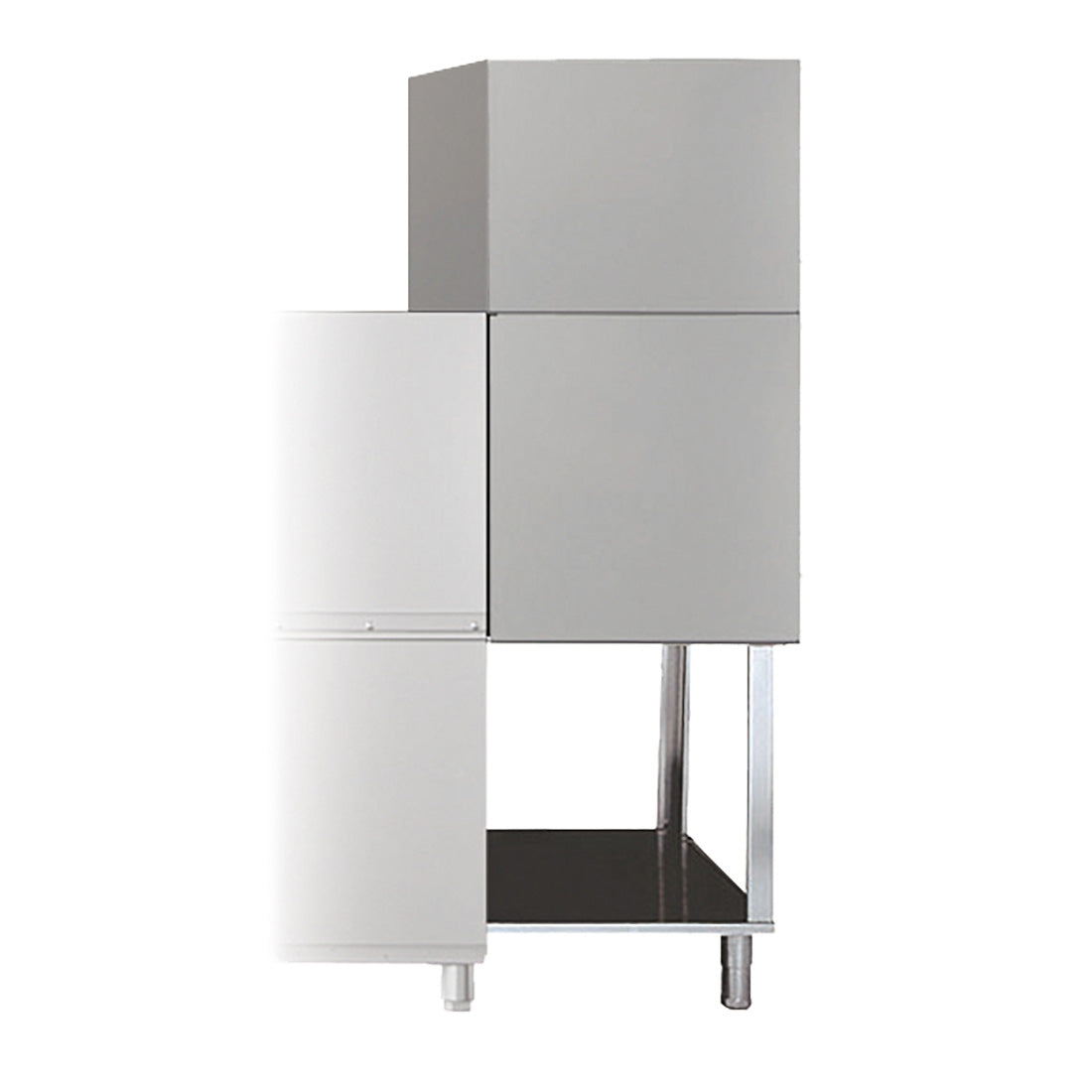

DRYING TUNNEL TS FOR FAGOR COMPACT CONVEYOR DISHWASHER - TS-COO

Drying tunnel TS for Fagor compact conveyor dishwasher - TS-COO

• TS-COO Specially for Rack Conveyor Dishwasher modular models CCO-180 and CCO-225
• Supplementary element with 9kW heating element box and upper fan for drying off the dishes with 0.55kW motor
• All AISI-304 Stainless steel
• Upwards-opening double panel door
• Easy access for cleaning
• Safety filter for pump suction
• Rinsing boiler with heat insulation
• Easy access for installation
• Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches,
• Washing arms easily removable as a set, for cleaning
• Rinse jets easily dismountable and removable.
• Wash (50 - 65 °C)
• Rinse (70 - 85 °C)
• Emergency stop button incorporated.
• Open door blocking system
• IPX4 protection system
• System for detection of blockage of conveyor carriage and automatic reverse function.
• High-power washing system with 4 upper and 4 lower washing branches
• 3 washing programs: deep, medium and high capacity
• Double effect rinse.
• Energy-saving systems
• Included:
• 2 base baskets; 2 baskets for plates;
• 1 basket for glasses; 1 basket for cutlery
• Watermark approved

Dimensions (WxDxH mm): 600x790x1945

2 Years Parts and Labour Warranty
